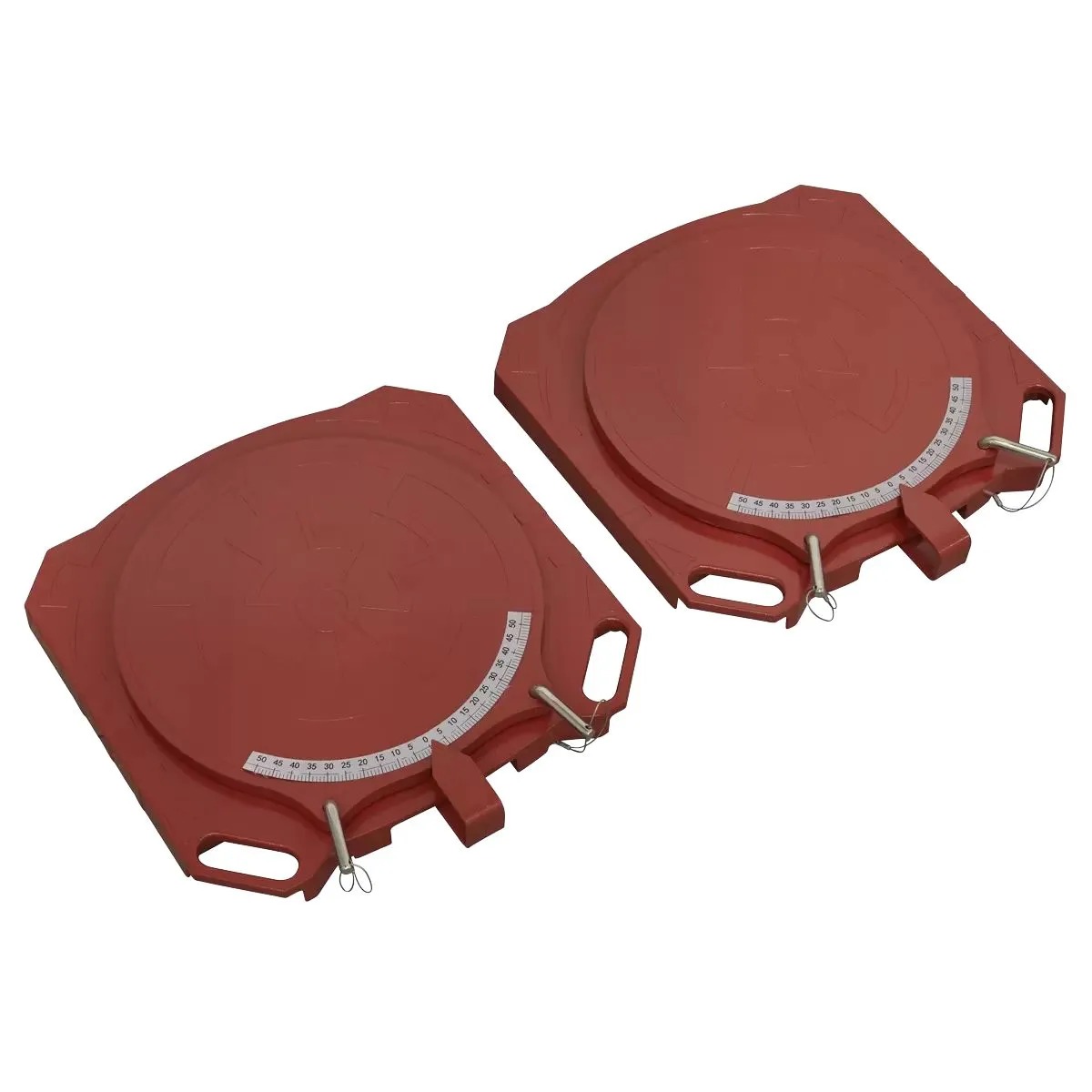

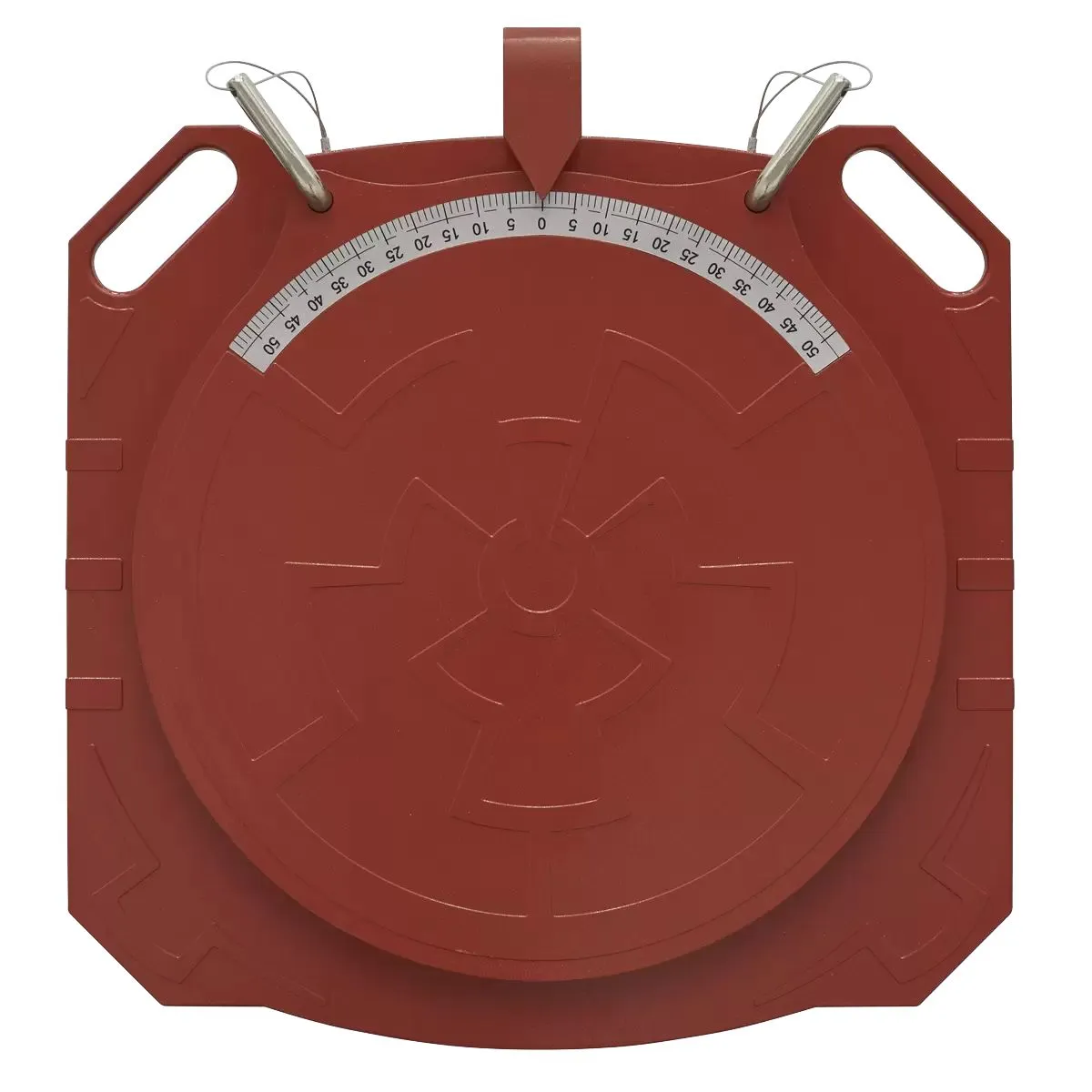

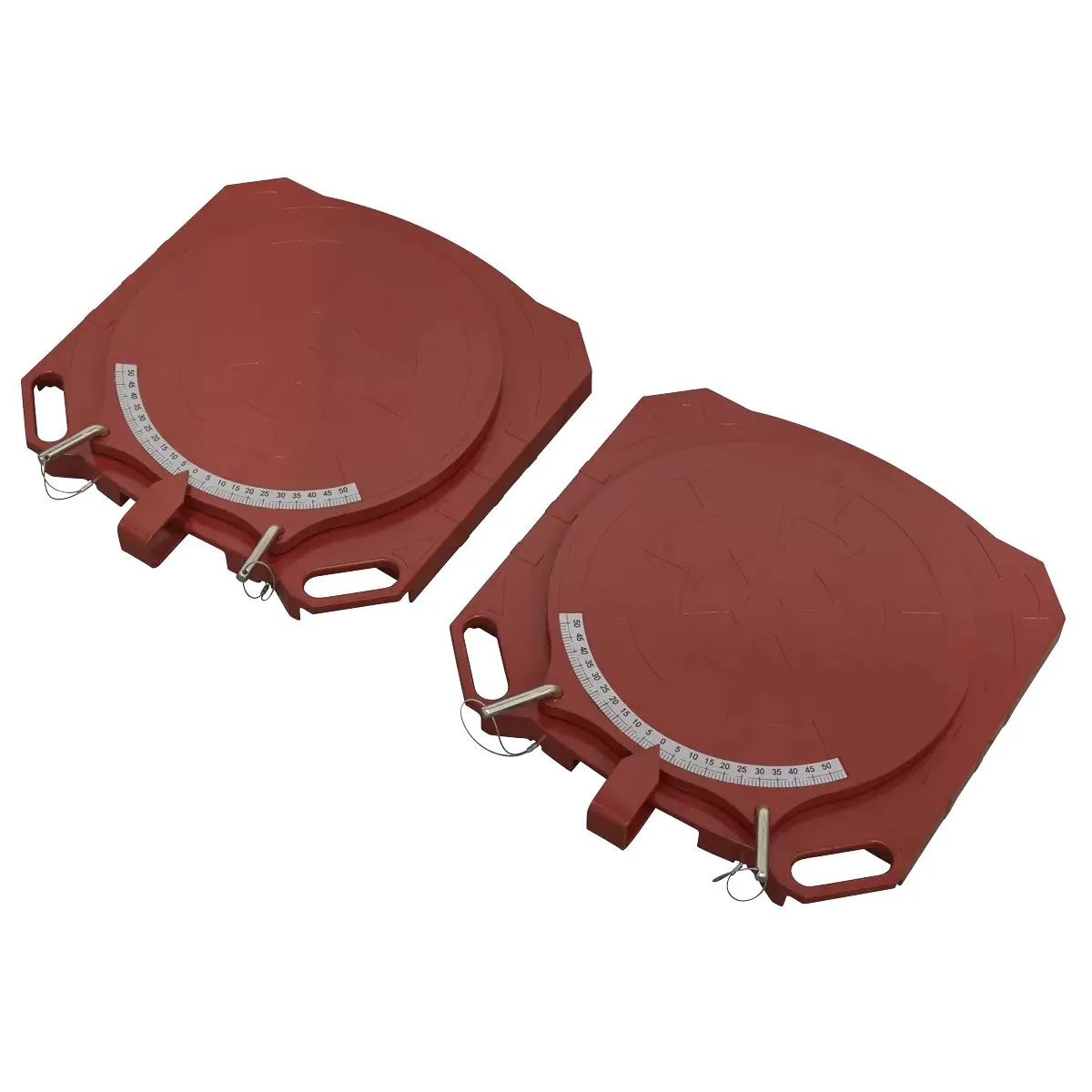

Sealey GA44 Steering Turntables Pair

Features:

Use in conjunction with Caster Kingpin Gauge Sets for accurate castor and kingpin alignment.
Also measures steering angles.
Locking pins prevent rotation of table whilst driving vehicle on and ensure accurate angular measurements.
Measures up to 55º rotation in either direction.
Maximum loading 4000kg per pair.

Specification:

Part no: GA44
Barcode: 5054511854930
Capacity: 4tonne pair, 2tonne each
Nett Weight: 11kg
Range: ±55°
Table Diameter: Ø400mm
Table Height: 50mm
Table Movement: 62mm Front-to-back, 55mm Side-to-side

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
